Process

Egg breaking & processing flow

BTH covers the line end to end. These are the eighteen stages of a complete breaking and processing plant, as laid out in the BTH equipment brochure.

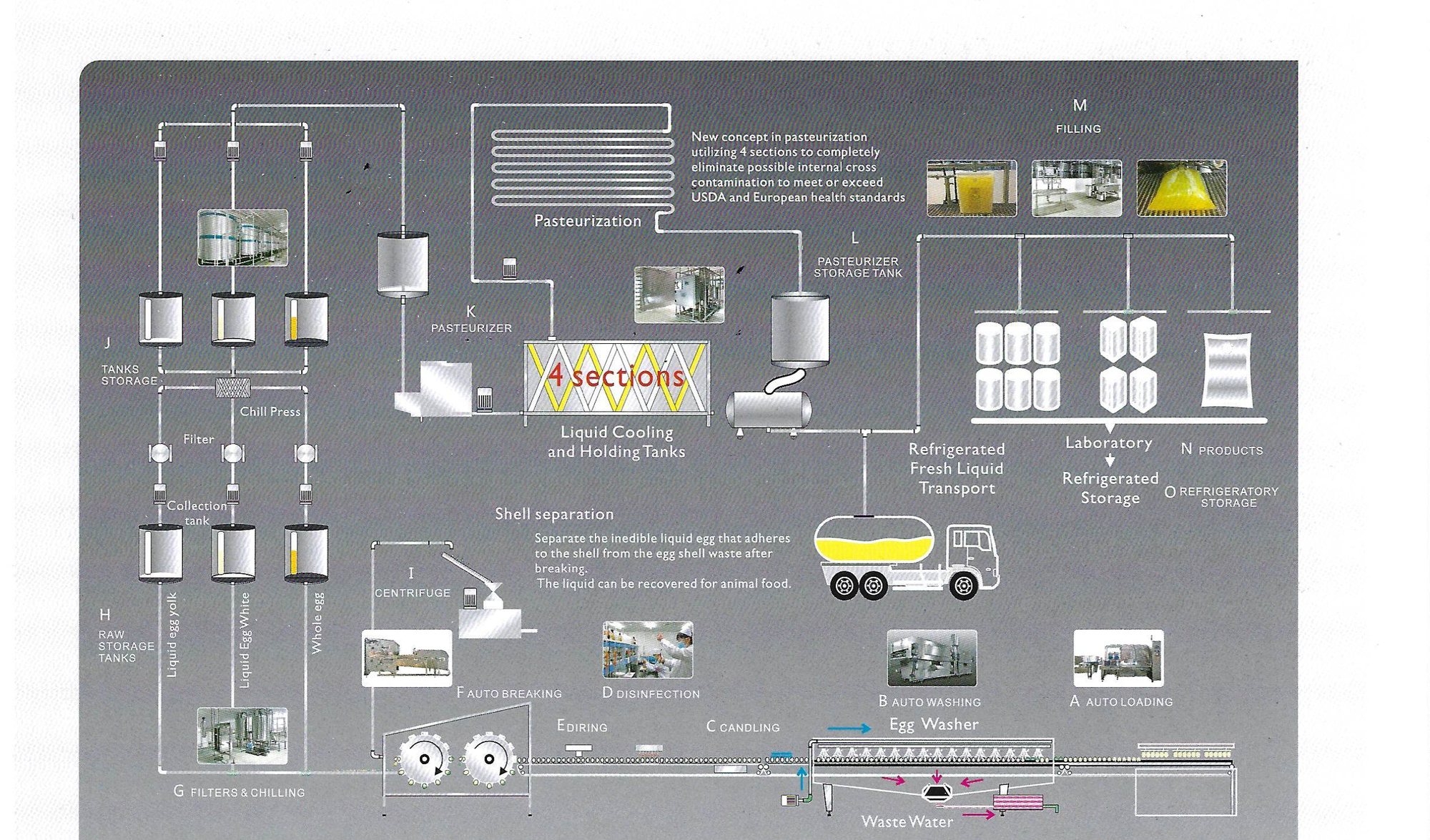

BTH egg breaking and processing flow diagram: egg loading and washing, candling, breaking and separation, filtration and chilling, raw storage tanks, pasteurization, liquid cooling and holding tanks, filling, and refrigerated storage
Egg breaking and processing flow diagram — BTH America equipment brochure, p. 5.

The eighteen stages

Each stage maps to equipment in the BTH catalog.

  1. 01Quality egg
  2. 02Egg loading
  3. 03Egg washing
  4. 04Candling
  5. 05Disinfection
  6. 06Egg breaking
  7. 07Yolk scanner
  8. 08Egg separator
  9. 09Filters & chilling
  10. 10Raw storage tanks
  11. 11Centrifuge (shell)
  12. 12Pasteurizer
  13. 13Laboratory testing
  14. 14Storage
  15. 15Bag filler
  16. 16Bucket filler
  17. 17Carton filler (ESL)
  18. 18Refrigerated storage

See the equipment for each stage

Planning a full line?

BTH supplies turnkey plants — building design, layouts, engineering, installation, commissioning and training of local staff.
