Equipment

In most grading / packing companies and egg breaking plants, the production begins with loading of eggs. In order to run an efficient plant it is therefore absolutely vital to have efficient and stable loading of eggs.

BTH AMERICA is specialized in supplying loading solutions for wet and dry conditions, and in optimum handling of different types and qualities of eggs, whatever they use paper or plastic trays or any combination could be used.

BTH AMERICA loaders are available for capacities up to 201,600 eggs/hour (560 cases/hour). All loaders are constructed by different symmetric modules, which can be put together in different layouts according to the layout requirements. To install BTH loaders, the space limitation in the process plant layout is no longer an issue.

Optiloader Plus Series

• The BTH AMERICA Optiloader Plus Series is a completely new generation of egg loaders. The target is to increase the capacity and the system optimization.
• Increased capacity.
• New stack infeed system ensuring the most accurate alignment in the de-stacker module, based on the dual-speed belt infeed.
• New retaining system for stuck eggs.
• New empty tray stack handling system, ensuring more stable and gentle stacking of empty trays.
• New vacuum system, improved suction, less energy consumption.
• Optimization of the drive system.
• New CIP recycling system for cleaning.
• More layout variations possible due to flexible configurations and compact size.

Egg loaders for egg graders

• These plus features are available on the 12 and 18 row optiloaders, and are also available in combi-versions (in-line / off-line) for the grading industry.
• With the combi-versions, it is possible to operate with a number of rows on the infeed table to be filled from the accumulator and the rest by the loader.
• The special swing arm construction ensures a synchronized speed between the eggs in the suction cups and the spools on the roller infeed conveyor.

The BTH AMERICA egg washers are the result of an intensive project, analyzing new ideas for egg washing in combination with the knowledge of years and long experience solving the challenges and problems our customers are faced with.

The BTH GENTLE WASH egg washer, built exclusively by BTH AMERICA, is the most gentle and effective egg washer on the market today. The unique brushing action plus a high volume, zero pressure wash solution delivery system.

The egg washers are capable of working with any kinds of eggs (nest-runs, grader eggs, dirts, leakers, “mud balls”, etc.) and are suitable to work in-line and off-line operations. No matter the conditions.

The Gentle Wash system

• Reduces egg losses.
• Reduces water and chemical consumption.
• Reduces / eliminates foam problems and the need for defoamer.

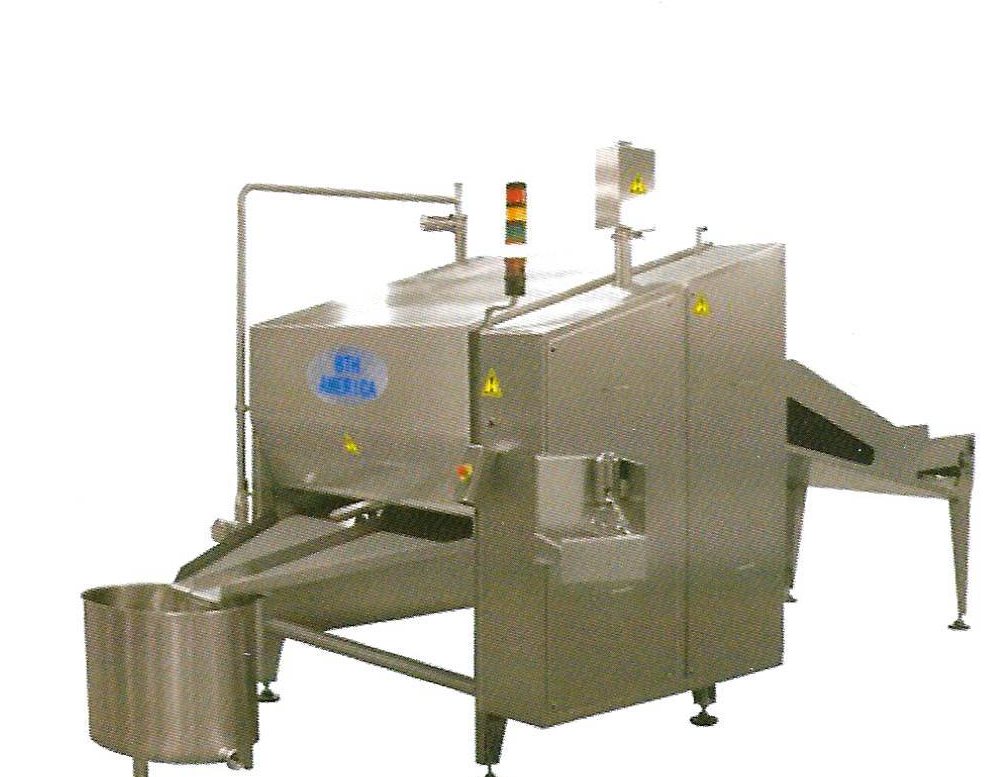

Why washing matters before breaking

Due to the high cost of eggs, when the egg has been broken on the breaking machine it is vital that every single egg is drained completely. This may seem an easy job, but with the different sizes and qualities of eggs it requires highly specialised equipment. A second requirement for today’s manufacturer is the separation of yolk and albumen — the demand for specialised egg products is increasing, and the foundation for this is clean albumen and high solids yolk.

BTH AMERICA egg washer features

• Combines the best of brush washing with a high volume of wash solution.
• Adjustable brush height system to handle any size of eggs.
• Touch-screen controls in SS control panel for remote mounting.
• Dependable, readily available components.
• Separate fresh water and sanitizer rinse spray bars.
• Sampling valve for sanitizer.
• Vent connections for exhaust venting.
• In-line filter removes small shell fragments to maintain maximum water flow.
• Automatic or manual operation modes for pumps, brushes, water level and temperature controls provide reliability and flexibility.
• Optional PLC controls are available.

Construction

• All SS welded construction to meet E-3A, 3A and ISO sanitary standards.
• Full open top and large drop-down side doors provide easy access for cleaning and maintenance.
• The egg washer tank is enclosed to reduce heat losses.
• Hard to clean areas have been eliminated.
• SS chain, sprockets and drive shafts, with wash-down bearings, are standard.
• Heavy duty high capacity pump and motor, with SS cover.
• All stainless steel heat exchangers (hot water or steam) for heated wash solutions; straight-through design is easy to clean and inspect.
• Standard configuration for efficient cleaning and lowest maintenance.
• Meets all sanitary construction requirements.
• Removable ends for easy inspection.
• Automatic temperature control with several control options available, with rapid initial heat-up option reducing heat-up times after required tank drain and flushes.
• Hot water tank coils, electric heating coils and direct steam injection are available options.
• Self-cleaning screen to remove shells and broken eggs from the egg washer water — no foam and better washer performance.
• Simple construction, low maintenance design.
• Brises drive motor with SS cover.
• Sanitizing, candling and drying options are all available to meet customers’ requirements; CIP spray system helps reduce clean time.

A variety of alternative schemes; the final solution can be used for any type of pasteurizer.

BTH AMERICA ESL pasteurization was the first real innovation system and can extend the shelf life of product protection attributes. By combining BTH dedication to innovation and commitment to the egg processing industry with the latest liquid processing and heat transfer technology from USA and Europe, BTH has developed an entire range of egg product pasteurization systems.

General — ESL

ESL after pasteurization, meant to extend the shelf life (ESL) of liquid egg products, is almost three times as long as compared with the life of a conventional liquid egg product. Shelf life extension of the adjustment is in the process of pasteurization, exposing the eggs for the time needed for heating.

What the system delivers

• Highest possible bacterial reduction = shelf life.
• Best product performance.
• Highest energy efficiency.
• Lowest operating costs.

Precise control

Power control is accurately metered and may be recorded. A meter constantly displays the amount of power being applied to heat the product.

Quick response

The full range of power control from minimum to maximum is traversed in seconds. Adjustments take effect immediately. Thermal lag time is zero. Automatic changes in power level due to physical properties or size of load are instantaneous.

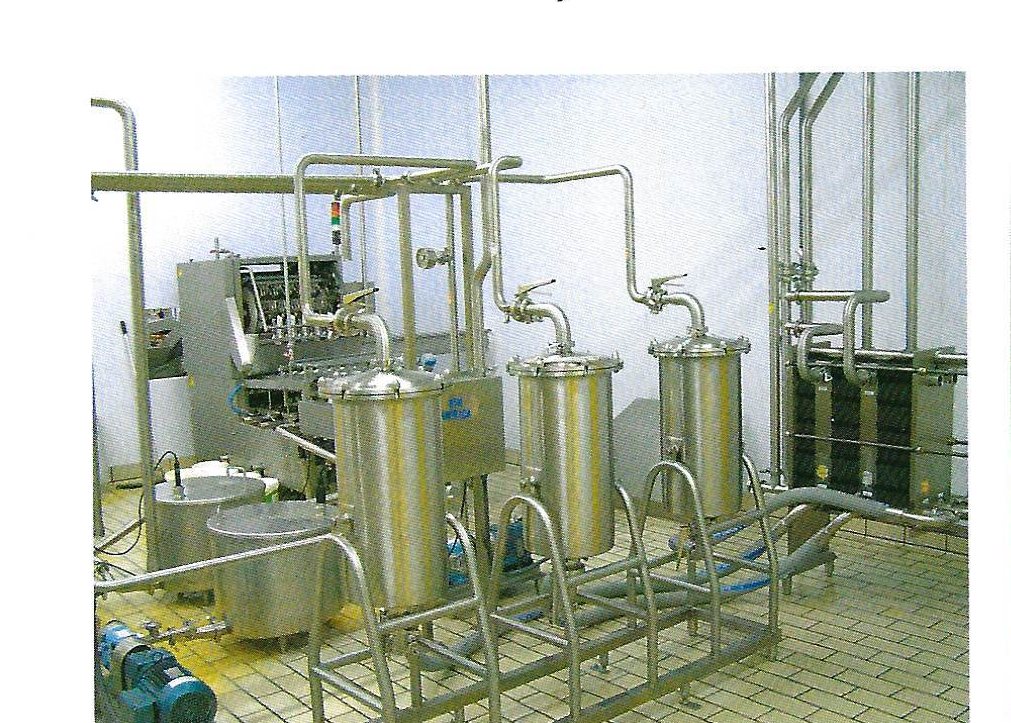

Liquid product handling

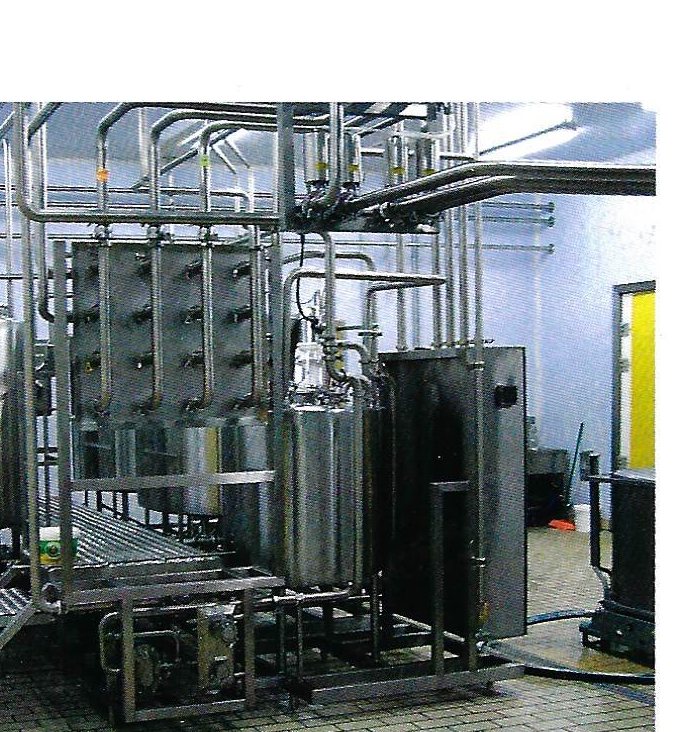

After breaking the egg into whole egg, or separating the yolk from the albumen, the egg must be filtered, cooled and if necessary mixed with salt or sugar to match the need of the end-user. In order to maintain a superior quality and secure a long shelf life, it is vital to keep this process as clean and cool as possible. With the patented automatic filter systems in combination with a specialized knowhow on plant design, BTH AMERICA is able to supply installations which will meet the hygiene requirements of today as well as tomorrow.

Heat exchangers and control

BTH AMERICA pasteurizers are specially designed for the egg processing industry and are available with either plate and/or tubular heat exchangers. Gentle handling and accurate temperature control are two of the key elements that have been optimized in the pasteurizer to ensure highly efficient pasteurization and achieve a high-quality output.

Product properties

The challenge of pasteurizing is first of all to achieve as long a shelf life as possible while at the same time maintaining the unique product properties of the egg and supplying the specialized products which will match the needs of your customers. The product properties must be secured irrespective of whether standard whole egg or specialized salted or sugared products are pasteurized. From the wide selection of different modules we customize the pasteurizer to match your specific requirements with regard to the raw material fed to the pasteurizer and the requirements of your customer.

Capacity and compliance

The pasteurizers are available with capacities from 600 to 10,000 l/h in standard configurations. Lower and higher capacities are available on demand. All BTH AMERICA pasteurizers are built in accordance with the EC rules, or USDA or CFIA, depending on the country of destination.

Valves and fittings

• No shaft alignment necessary; no coupling guard required. Special base design enhances cleanability and reduces overall length of the complete unit by an average of 20–25%.
• Average of 10–20 gear ratios available per horsepower; NEMA or IEC frames available; right angle reducer also available for additional space savings.
• 1/2 through 60 horsepower drive options available.
• Horizontal or vertical porting available; separate oil sump for gear reducer and timing gears.
• For clean-in-place applications (CIP), a piston in the actuator allows opening of the valve without having to over-pressure it. After relieving of CIP is complete, the valve reseats in place.
• Exterior adjustment with sealed cap to safeguard threaded area; no exposed threads.
• Positive-Stop prevents overloading of spring and engages with the sealed cap to lock in the setting.
• Cracking pressure adjustment ranges from zero (fully unloaded) to maximum published holding pressure of standard, heavy-spring actuators.
• Piston for full opening / by-pass; heavy-duty construction with three bearing locations and sealed, welded construction.
• S-Line connections consist of two matching ferrules, a gasket and a clamp to complete this union. Utilizing these unions into a process piping system will ensure easy assembly and disassembly of process lines and equipment.
• If a change to a system becomes necessary, this can be accomplished quickly and easily with S-Line fittings. These versatile fittings were originally designed for both COP (clean-out-of-place) and CIP (clean-in-place) applications.
• 3-A sanitary standard 85-02 approval; PMO Section 15p(B) compliance for single seat lift separation while product is in the opposite housing; PMO Section 12p compliance for ability to clean all product contact surfaces.
• Fully independent operation and cleaning of either the upper or lower housing is achieved due to continuous production and cleaning; secure and reliable; compact and better value; completely and easily serviceable; robust.

Designed for your application to provide reliable, consistent cleaning.

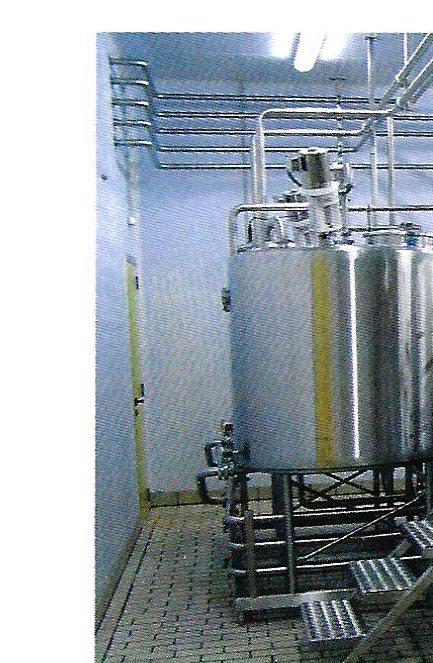

Clean-In-Place (CIP) systems are automated systems used to clean the interior surfaces of food and beverage process pipes, processing vessels, tanks, spiral freezers, mixers, blenders, homogenizers, roasters and associated fittings, without disassembling the process. Thorough, repeatable in-place cleaning is critical to the quality of your product, the safety of consumers — and your bottom line.

Engineered to your plant

BTH AMERICA CIP systems are engineered to your specific plant application, layout and utility requirements for effective and efficient sanitary process equipment cleaning. Our application-specific CIP design and sizing ensures sufficient flow. As a result, appropriate pressure is available to thoroughly remove residue, rinse effectively, shorten cycle times and promote worker safety.

Programming

Our in-house programming experts design each CIP program to optimize cycle times that get you back into production faster, while reducing chemicals, water use and operating costs.

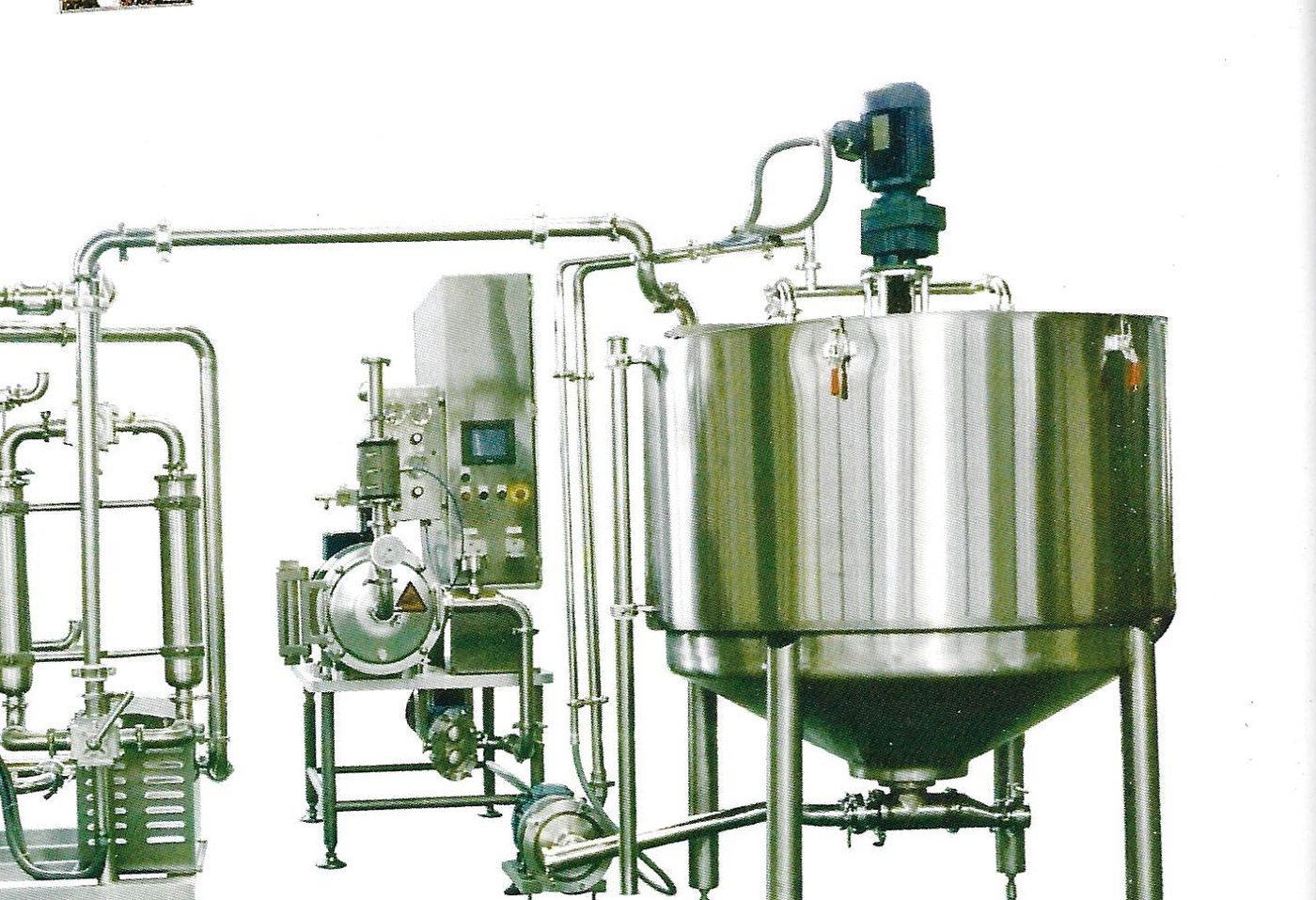

The BTH AMERICA Continuous Mixer continuously aerates cake batter, creme fillings, icings, marshmallow, whipped cream, butter and many other food products for unsurpassed consistency, uniform cell structure and precise specific gravity.

Mixer features

• Stainless steel mixing chamber with high strength pyramid shaped mixing teeth, resulting in faster more efficient mixing.
• Design of mixer chamber results in lower mixing speeds, lower energy cost, and less heat transfer to product being mixed.
• Consists of two stationary stators and one rotating rotor.
• Front and rear stators of mixing chamber are constructed of double-walled stainless steel for coolant circulation and efficient temperature control.
• Sanitary, positive displacement pump with stainless steel body and connections.
• Stainless steel NEMA 4X electrical enclosure.
• Meets BISSC standards.

Mixing tank features

• Mixing tank made of heavy gauge stainless steel with two piece hinged cover, with two liquid inlets and one dry ingredient inlet.
• Mixing tank cover with safety interlock switch.
• Stainless steel rotating mixer shaft and blades, and two sets of stationary stainless steel mixer blades mounted on opposite side of the tank.
• Variable speed drive motor.
• Variable speed pump for transferring mix to ancillary equipment.
• PLC for controlling mixing and pumping cycles.
• NEMA 4X electrical enclosure.

Options

• Cabinet design with convenient operator controls and swing out doors for easy access to electrical and mechanical components.
• Refrigeration unit.
• Hinged front stator for easy cleaning and alignment.
• Mass flow meter for precision control of specific gravity.
• Color injection system.
• Rotor cooling.
