Total solutions for the egg processing industry
BTH supplies the whole line — loading, washing, breaking and separation, pasteurization, blending, filling and clean-in-place — to processors operating under USDA inspection.
Equipment for every stage
Shell egg intake through liquid egg filling. Because BTH supplies the whole line, sections integrate without third-party interfacing.
Featured equipment
Full specifications, model tables and capacity ranges are on the equipment page.

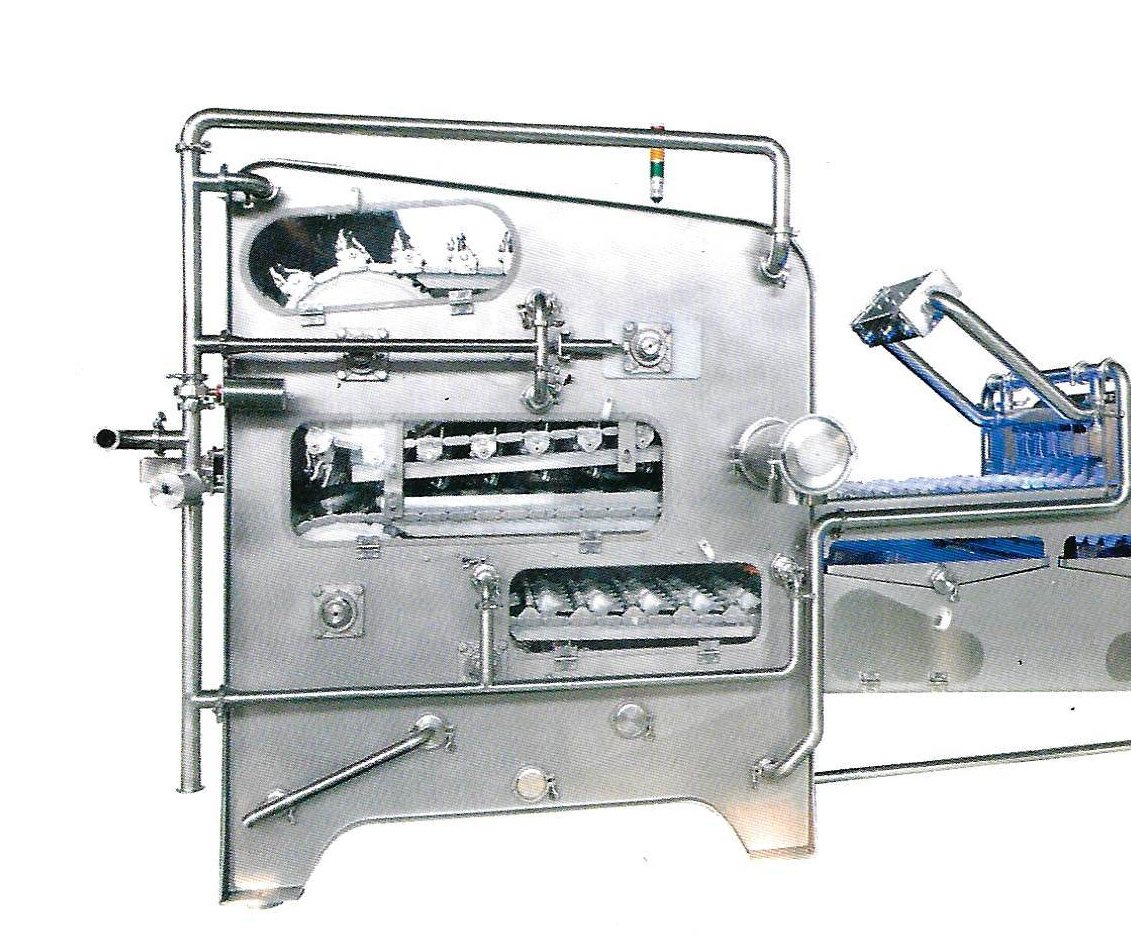

Breaking ULTRA Breaker
High-capacity breaking and separation for industrial plants.
ULTRA 160 / 220 / 350 / 500 — 57,600 to 180,000 eggs per hour (160–500 cases/hour), 6 to 15 rows. Breaker/separator range 20,000 to 180,000 eggs per hour.
Specifications

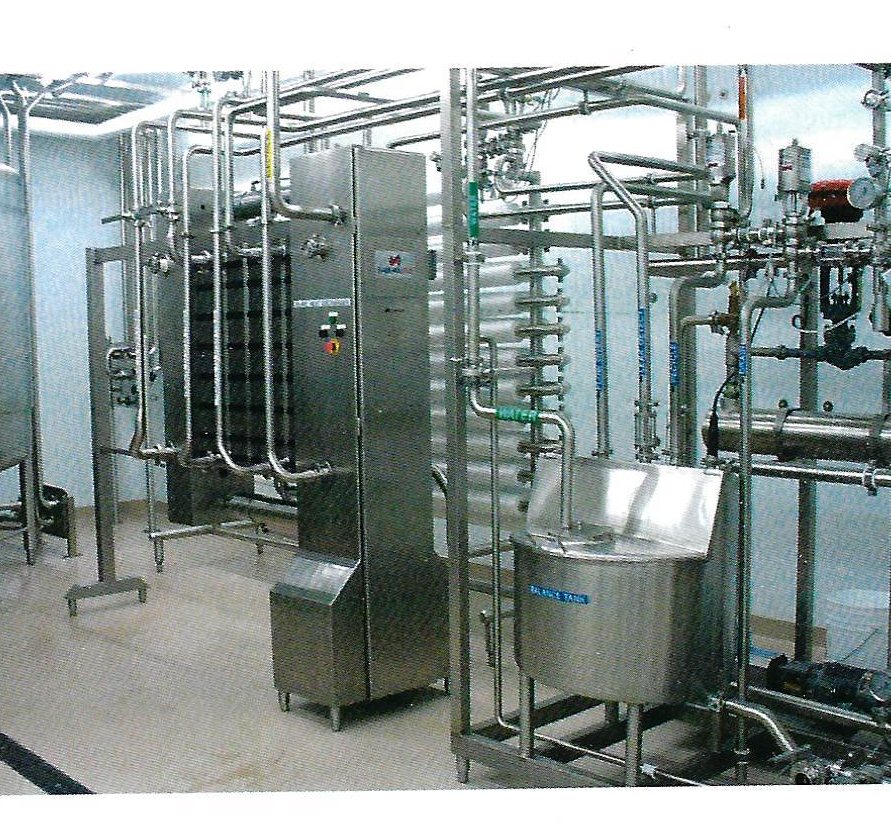

Processing Pasteurization
Continuous liquid egg pasteurization with recorded thermal control.
Pasteurizers available from 600 to 10,000 litres/hour in standard configurations. Lower and higher capacities on demand.
Specifications

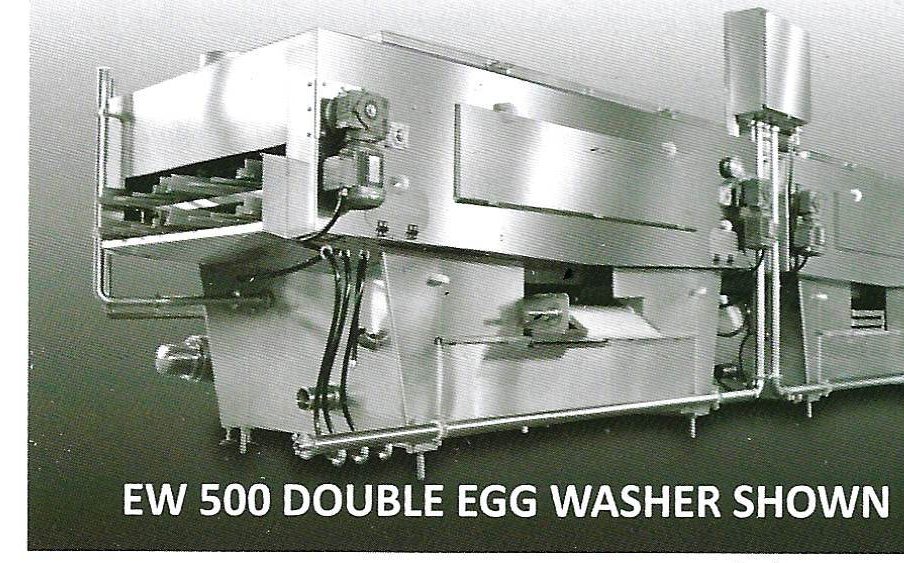

Infeed & Handling Egg Washing Systems
Shell washing and sanitizing ahead of breaking.
ULTRA EW 160 / 220 / 350 / 500 — matched to the breaking line, 57,600 to 180,000 eggs per hour.
SpecificationsHow a BTH plant runs
Eighteen stages from quality egg intake to refrigerated storage of the finished liquid product.
- 01Quality egg

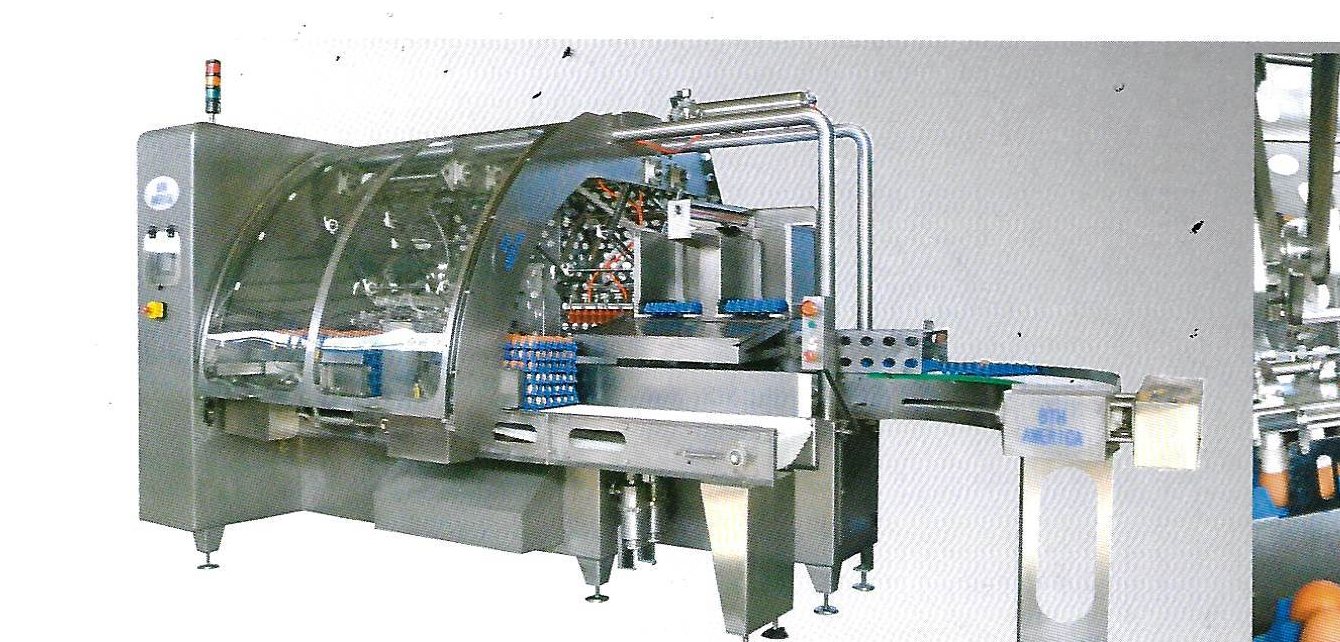

- 02Egg loading
- 03Egg washing
- 04Candling
- 05Disinfection
- 06Egg breaking
- 07Yolk scanner
- 08Egg separator
- 09Filters & chilling
- 10Raw storage tanks
- 11Centrifuge (shell)
- 12Pasteurizer
Built for the US compliance environment
Egg products processing in the United States is inspected by USDA FSIS under the Egg Products Inspection Act at 9 CFR Part 590. BTH systems are configured to support the requirements plants are held to — instrumented thermal control, automatic flow diversion, continuous temperature recording, and documented CIP cycles.
BTH's engineering lead, Mike Harris, is a former USDA official who was part of the group that wrote 9 CFR Part 590 and still sits on its review and update group — including the 2023 and 2024 updates — and remains a member of the 3-A Sanitary Standards committee.
Turnkey scope
- Building design and plant layouts
- Engineering and installation
- Commissioning and training of local staff
- Profitability analysis
- Dimensioning of the processing line
- Consulting in the engineering of the building
Companies with BTH equipment in their facilities
- Michael FoodsEgg processing — United States
- McDonald'sQuick service restaurant
- KFCQuick service restaurant
- NestléFood manufacturing
- UnileverConsumer goods
Specifying a line or replacing a breaker?
Send your throughput target, finished product and available floor area.
